Mixer Machines

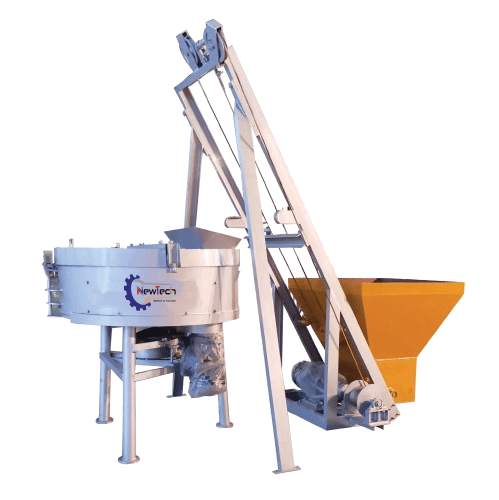

MP Series Vertical Shaft Planetary Mixer
Vertical shaft planetary mixer available in 16 models (MP-50 to MP-4500) with complete bottom-plate coverage every 4 turns — ideal for sponge permeable bricks and PC imitation stone landscape bricks.
Models
16 sizes
Capacity
50 - 4000 L
Power
3 - 75 KW
Product overview
The MP Series uses a unique vertical shaft planetary motion where every four turns (6 seconds) completely covers the bottom plate of the mixer without any dead area. The complicated stirring motion track delivers strong, uniform stirring with high efficiency and convenient maintenance. Available in 16 models from MP-50 (50L, 3KW) to MP-4000 (4000L, 75KW+), these mixers are especially suitable for high-end cement products such as sponge permeable ecological bricks and PC imitation stone landscape bricks on the market. Features include a mixing device, discharging device, discharging door, and gearing system.
Key specifications
- Model Range
- MP-50 / 100 / 150 / 250 / 330 / 500 / 750 / 1000 / 1250 / 1500 / 2000 / 2500 / 3000 / 3500 / 4000 / 4500
- Filling Volume
- 75 - 6000 L
- Feeding Capacity
- 120 - 9600 kg
- Compacted Concrete
- 50 - 4000 L
- Mixing Power
- 3 - 75 KW
- Discharging Power
- 2.2 - 3 KW
- Mixing Blades (Star+Blade)
- 1+2 to 3+3
- Weight Range
- 500 - 18,500 kg
| Format | Cycle | Per hour |
|---|---|---|
| MP-50 (50L) | 60 s | 3 KW / 500 kg |
| MP-100 (100L) | 60 s | 5.5 KW / 800 kg |
| MP-250 (250L) | 60 s | 11 KW / 1500 kg |
| MP-500 (500L) | 60 s | 18.5 KW / 2500 kg |
| MP-1000 (1000L) | 60 s | 37 KW / 5000 kg |
| MP-1500 (1500L) | 60 s | 55 KW / 8000 kg |
| MP-2000 (2000L) | 60 s | 75 KW / 8500 kg |
| MP-4000 (4000L) | 60 s | 75+ KW / 18500 kg |
Applications
